Parts And Accessories
Filters
Fine-tune signal amplification systems for optimum performance with channelized filters.

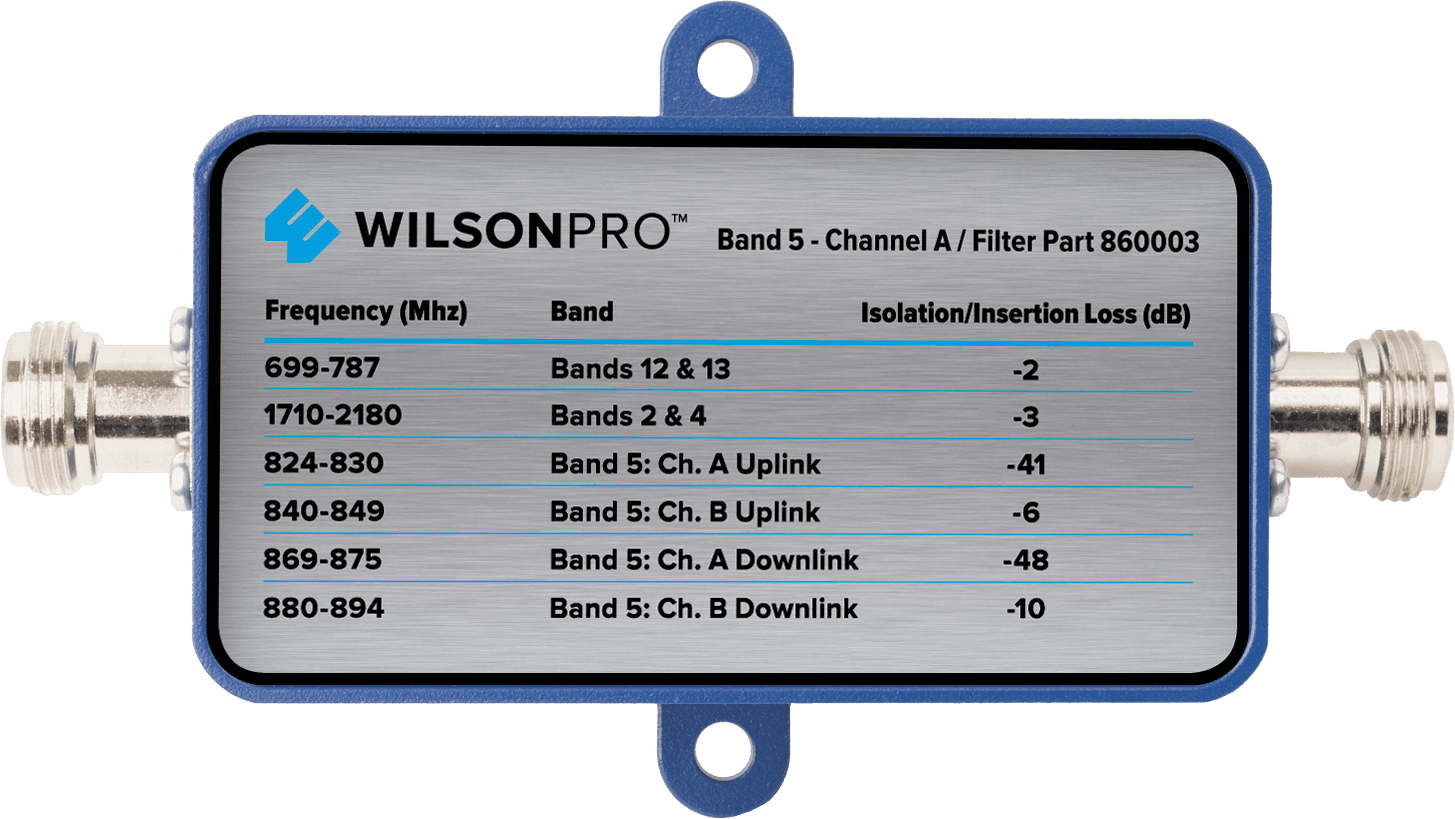

Band 5 Channel A Filter (N Connector)
SKU 860003
Description
Designed to provide maximum attenuation for Channel A, Band 5, and allow other channels to pass through with minimal attenuation. Channel A includes: Downlink: 869-875 MHz/ Uplink: 824-830 MHz.
Specification
Connectors
N-Female
Dimensions
4 x 5.75 x 2.25 in.
Impedance
50 Ohm
Weight
0.820 lbs.
