Parts And Accessories
Outdoor Antennas
Boost your cellular signal strength with our high-performance outdoor cellular antennas, designed to capture and amplify outdoor signals for improved indoor coverage.

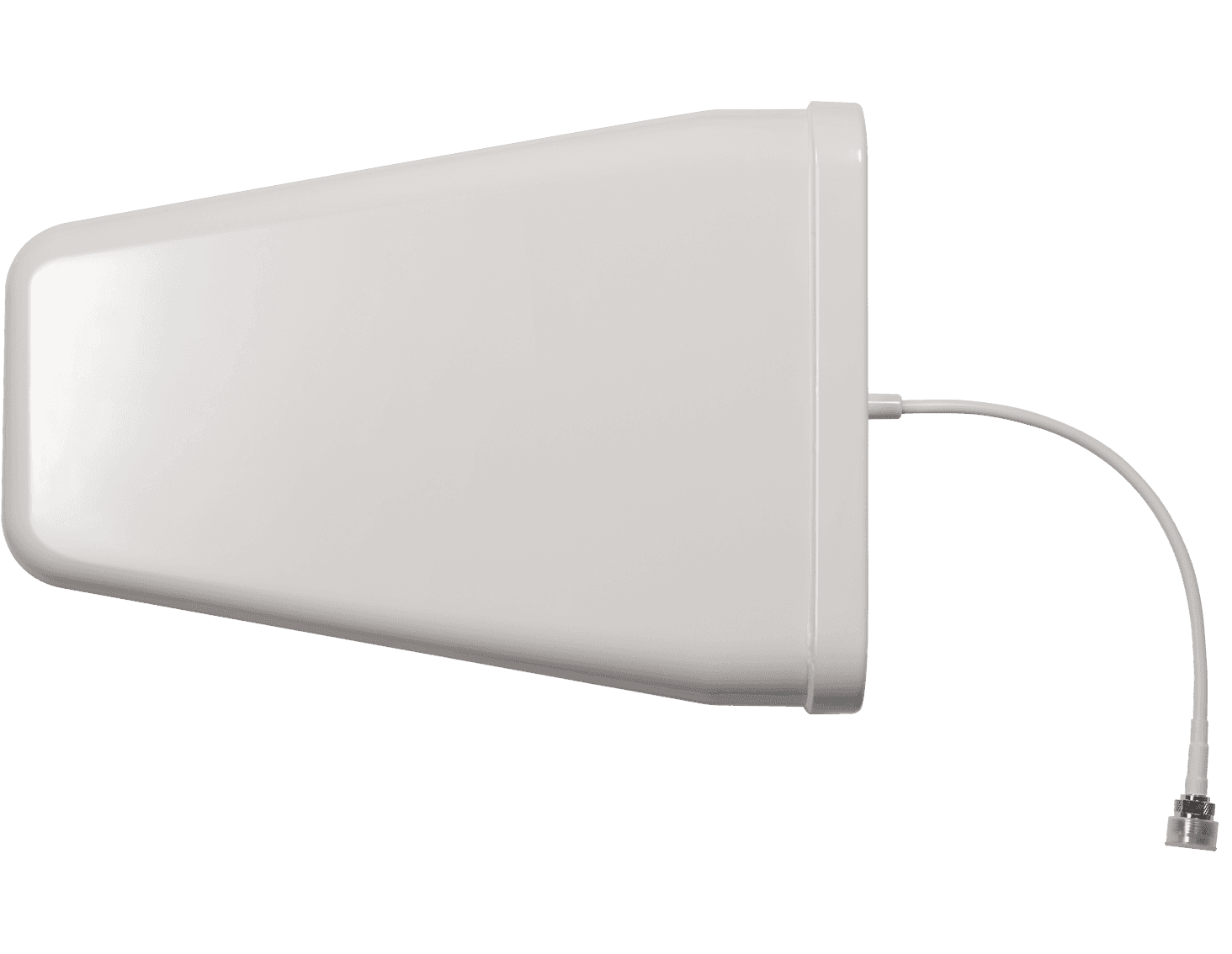

Wideband Directional Antenna (50 Ohm) 617-2700 MHz
SKU 311233
Description

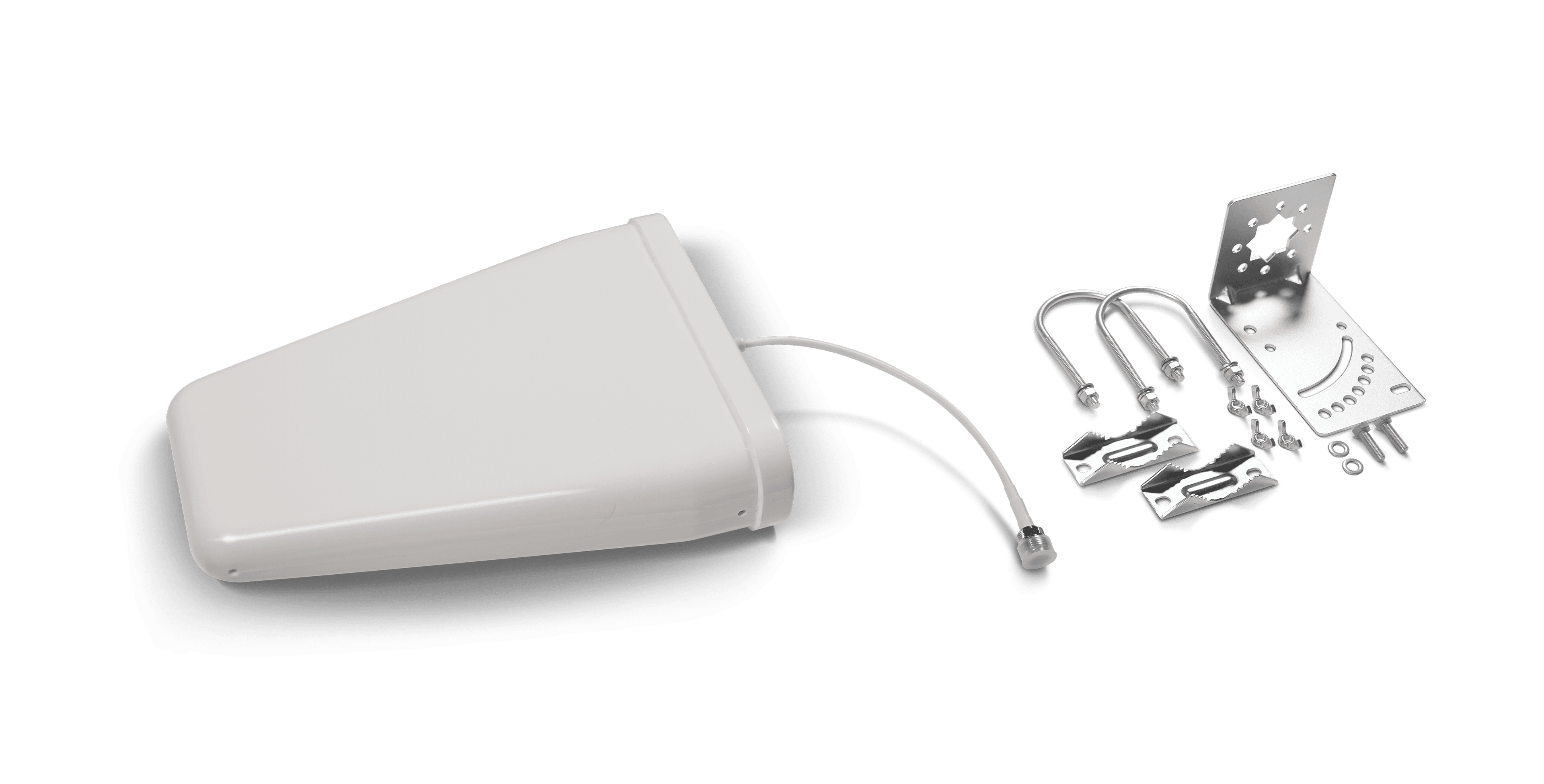

The Wideband Directional Antenna 50 Ohm 617-2700 MHz also comes with an N-Female connector, installation hardware, and 2-year manufacturer’s warranty.
SPEC SHEETSpecification
Connectors
N - Female
Dimensions
11.5 x 8.2 x 2.5 in.
Frequency
617- 698 MHz
698-806 MHz
806-960 MHz
1710 -1880 MHz
1850 -1990 MHz
1910-2170 MHz
2300-2700 MHz
Peak Gain
4.8 dBi
6.3 dBi
8 dBi
8.3 dBi
7.6 dBi
8 dBi
7.8 dBi
Max Power
20 W
Impedance
50 Ohm
Weight
1.76 lbs.
