Bringing Cell Coverage to Massive Switch Data Center in Grand Rapids

Bringing Cell Coverage to Massive Switch Data Center in Grand Rapids

October 26, 2017

Estimated Reading Time: 2 minutes

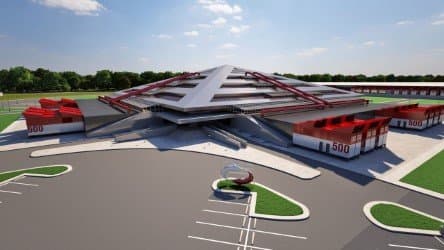

Last year, the global technology infrastructure company Switch announced plans to open a massive new SUPERNAP data center campus in Grand Rapids, Michigan. The centerpiece of the new complex is a unique Pyramid building. The five-story structure of glass, steel and concrete was built in 1989. It had been used as office space, and Switch began a major renovation to convert it to 225,000-square-foot of data center space, with the top floors as executive offices.As soon as the renovations got underway, it was obvious that the building had a significant problem. There was no cell signal whatsoever in the Pyramid’s basement. The basement was being outfitted to function as a critical storage hub, busy with employees. On higher floors, the cell service was a little better, but still not strong enough to support executive offices and corporate meeting rooms.

Poor Cell Signal Unacceptable

The new campus would be storing valuable data for companies all over central and eastern North America. Prospective customers would enter the striking Pyramid building, remodelled in Switch’s signature red, and wait in the central atrium, which houses an enormous Foucault Pendulum. They would tour the underground storage facilities. Poor cell phone coverage was not an acceptable part of the customer experience. It also wasn’t good enough for Switch’s own executives, who would be frequent visitors between the Grand Rapids center and others in Las Vegas and Tahoe, Nevada. Finally, the finished campus would house hundreds of employees, all of whom needed to be reachable wherever they were on the campus (including the cafeteria, which was a dead zone).It wasn’t just a preference for Switch. Their core promise to data center customers is a guarantee of continuous up time. Every customer and every Switch technician needed to have reliable cell coverage, wherever they were in the building.With the building renovation ongoing, Switch needed a quick solution that could be rolled out before construction finished. WilsonPro integrator, RSRF, had already designed and installed a repeater solution in their Core SUPERNAP campus in Las Vegas, and the company again looked to us to quickly bring great cell coverage to the new campus.

Finding the Solution

The RSRF team visited for a site survey within a week of first being contacted by Switch’s Director of Network Infrastructure. On site, existing signal strength was confirmed and building needs were discussed. There was also an existing antenna noted on the roof of the Pyramid. Our team designed a full signal solution for the building and had a full quote delivered to the customer less than a week later.For Switch, the WilsonPro Repeater Solution was comprised of seven repeaters in the basement, five repeaters for the ground floor, and a final repeater to cover the top floor executive offices, covering a total of 370,000 square feet.As we tested the system in place however, we quickly realized that the existing antenna we had hoped to use just wasn’t able to provide the high gain we needed to support such a large system. We ventured up to the very top of the Pyramid to replace the existing antenna with a powerful WilsonPro yagi antenna.With the new donor antenna and a total of 13 WilsonPro repeaters and 106 panel and dome indoor antennas, the Pyramid building finally had cell coverage equal to the impressive new renovation. Even the basement — where users had previously seen zero bars on their cell phones — had coverage on every carrier. Today, with strong cell signal and a sleek new facility, the largest data center in the eastern United States (as of this writing) is open for business.WilsonPro offers a variety of customized, in-building connectivity solutions for enterprise-level organizations. Contact us today to learn which one is right for you.
