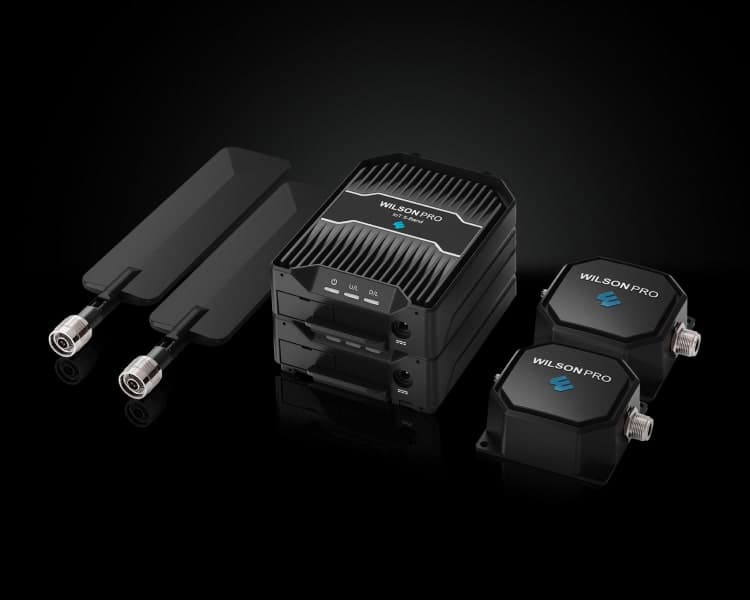

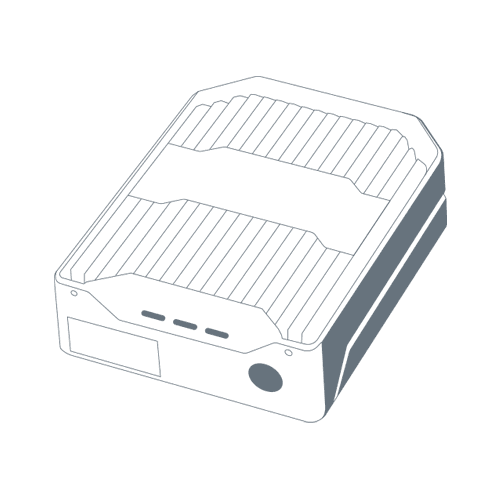

WILSONPRO IOT 3.0 MIMO
Maximize IoT performance with direct-connect cellular signal
Strong, consistent signal across all U.S. carrier networks
The WilsonPro IoT 3.0 MIMO is a “Direct-Connect” solution for cellular network capable equipment and IoT devices. Compatible with all U.S. carrier networks, the Multiple Input Multiple Output configuration of our IoT 3.0 connects directly with cellular modems and provides reliable cell signal to guarantee successful IoT data transfer.
Boost cellular IoT connectivity and ensure reliable data transfer
Advanced gain
The WilsonPro IoT 3.0 MIMO direct-connect cellular amplifier delivers a 5X stronger cell signal. The space-saving design of MIMO makes it ideal for integration into IoT systems with limited space.
Passive RF bypass
If the amplifier loses power, IOT 3.0 MIMO reroutes signals through a passive path to maintain basic signal transmission.
Dual amplification
Support high-data rate IOT devices through dual amplifiers with 2X2 and 4X4 Multiple-Input Multiple-Output (MIMO) configurations.
Power over coax (PoC)
DC power interface with RF pass through allows the antennae to be placed at the point of the signal.
Twice the power for uninterrupted operations
Our latest IoT solution, available in multiple configurations, delivers hardwired, consistent coverage for point-of-sale, digital displays, security applications, ATM’s, inventory management, equipment, and more.
Technical Specs
Download the complete WilsonPro IoT MIMO 2x2 spec sheet
Download Now- MODEL NUMBER462079FREQUENCIESBand 12700 MHzBand 13700 MHzBand 5850 MHZBand 41700/2100 MHzBand 25/21900 MHzMAX GAIN15 dBMAX UPLINK POWER24 dBmMAX DOWNLINK POWER-5 dBmIMPEDANCE50 OhmPOWER12V DC / 2ACONNECTORSN-FemaleAMPLIFIER DIMENSIONS5.4 x 4.2 x 1.4 inAMPLIFIER WEIGHT1.58 lbs
See how the WilsonPro IoT 3.0 MIMO delivers reliable 5G connectivity for your business.
