PSR 700/800 MHz BDA by Wilson Connectivity
Public Safety BDA by Wilson Connectivity

Public Safety 700/800 MHz BDA system from a leading US manufacturer

LEARN MORE

Industry-leading Public Safety ERCES solutions

The Public Safety 700/800 MHz Bi-Directional Amplifier (BDA) from Wilson Connectivity is a dual band system that supports public safety wireless services indoors to provide necessary communication support and ensure seamless, reliable coverage for emergency responders. Paired with the Wilson Public Safety Battery Backup Solutions, the PS 700/800 MHz BDA addresses the challenges of signal coverage and installation complexity while also satisfying regulatory requirement across the US- Emergency Responder Communications Enhancement Systems (ERCES).

BDA solutions for Public Safety

Comprehensive ERCES solution
The Wilson Public Safety BDA solution supports all aspects of local AHJ requirements including battery backup, UL2524, connectivity to the FACP, remote annunciator support and seamless expansion port capabilities to the Wilson Connectivity PS DAS solution.

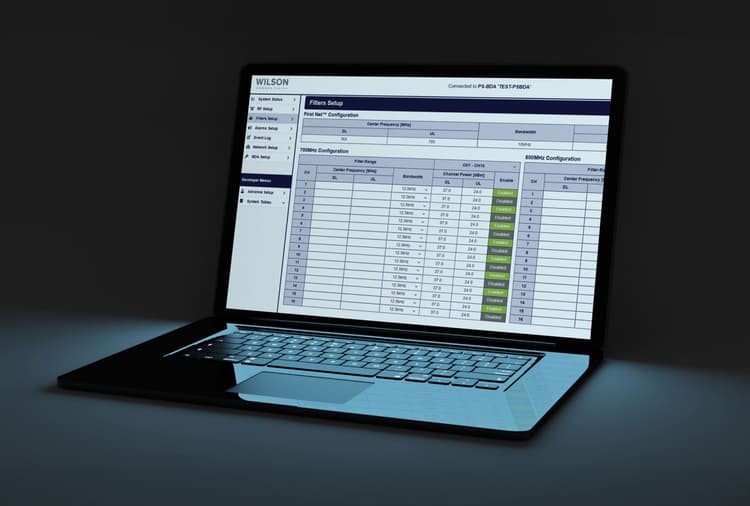

Easy GUI configuration and flexible software licensing options
Our web-based GUI provides an industry-leading interface allowing for quick and easy system commissioning. Software license option(s) allow for additional hardware enablement from a common hardware platform.
Remote monitoring and diagnostics
Internal modem (optional) supports remote connectivity enabling GUI access, remote diagnostics and troubleshooting from anywhere. Comprehensive alarming capabilities include FACP connection, SNMP and remote cloud connectivity.
Industry-leading US manufacturer and service provider
Wilson solutions are designed, assembled, and supported in the U.S., with industry-leading customer service response times for Public Safety systems: 90-second call response time, a 91% first-call resolution rate, and immediate escalation path to sales engineering.
Product Image

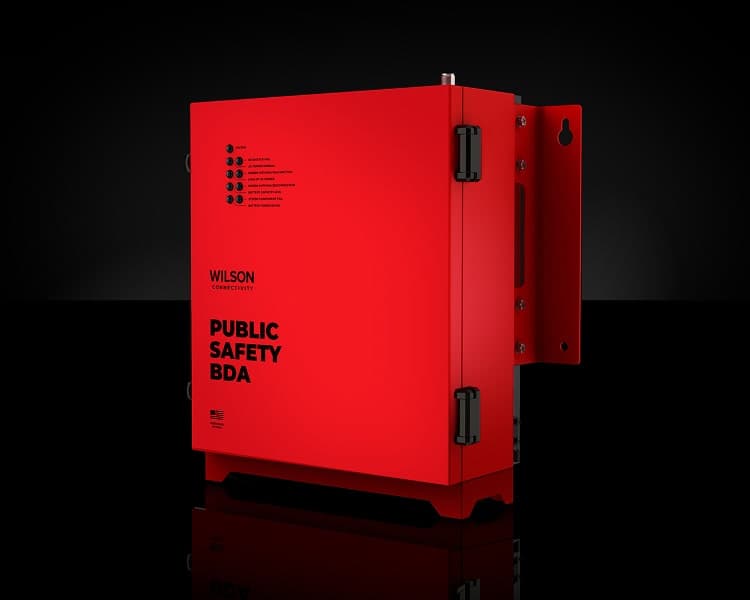

Public Safety 700/800 MHz BDA

The Public Safety 700/800 MHz Bi-Directional Amplifier from Wilson Connectivity is a high-performance BDA that enhances in-building radio coverage for first responders, ensuring mission-critical communication reliability.

  • Base hardware is 700/800 MHz, 1W per band, Class B BDA
  • Optional software key unlocks up to 5W per band, Class A operation and/or FirstNet support.
  • UL2524 compliant solution meets the requirements of the AHJ
  • Integrated battery charger with up to 24-hour battery backup
  • Integrated annunciator with remote annunciator options
  • Simple web-based GUI interface
  • Dry-contact alarm relay for FACP
  • Passively cooled-no fans
  • Internal modem (optional) for remote diagnostics

Public Safety BDA Configuration

BDA Diagram
https://cdn.amplifi.pattern.com/632c9da1-6d48-4f54-8bd7-20fd71119ee2

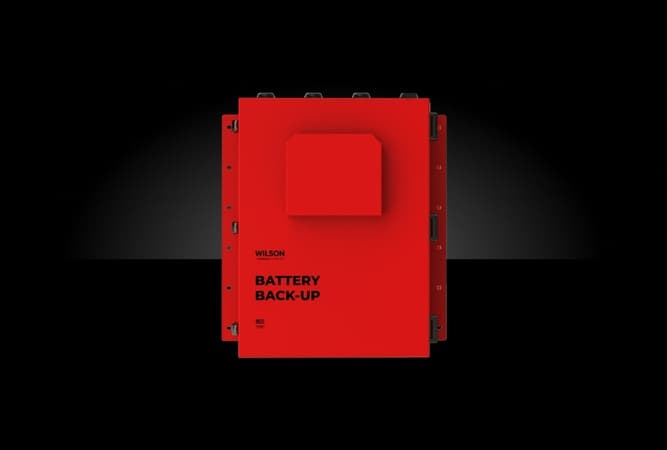

Public Safety BDA Battery Backup Unit

Ensures uninterrupted operation during power outages and emergencies.

  • UL2524/NEMA3R compliant battery backup solution
  • Up to 24-hour run-time solutions
  • Locally available Group 27 or Group 31 batteries
  • Wall and rack mount options
  • Internal overcurrent protection

Customize your Public Safety BDA solution

View the components that combine to create a Public Safety BDA solution that fits your unique needs.

Specification

Public Safety BDA
Download Now
Battery Backup
Download Now
